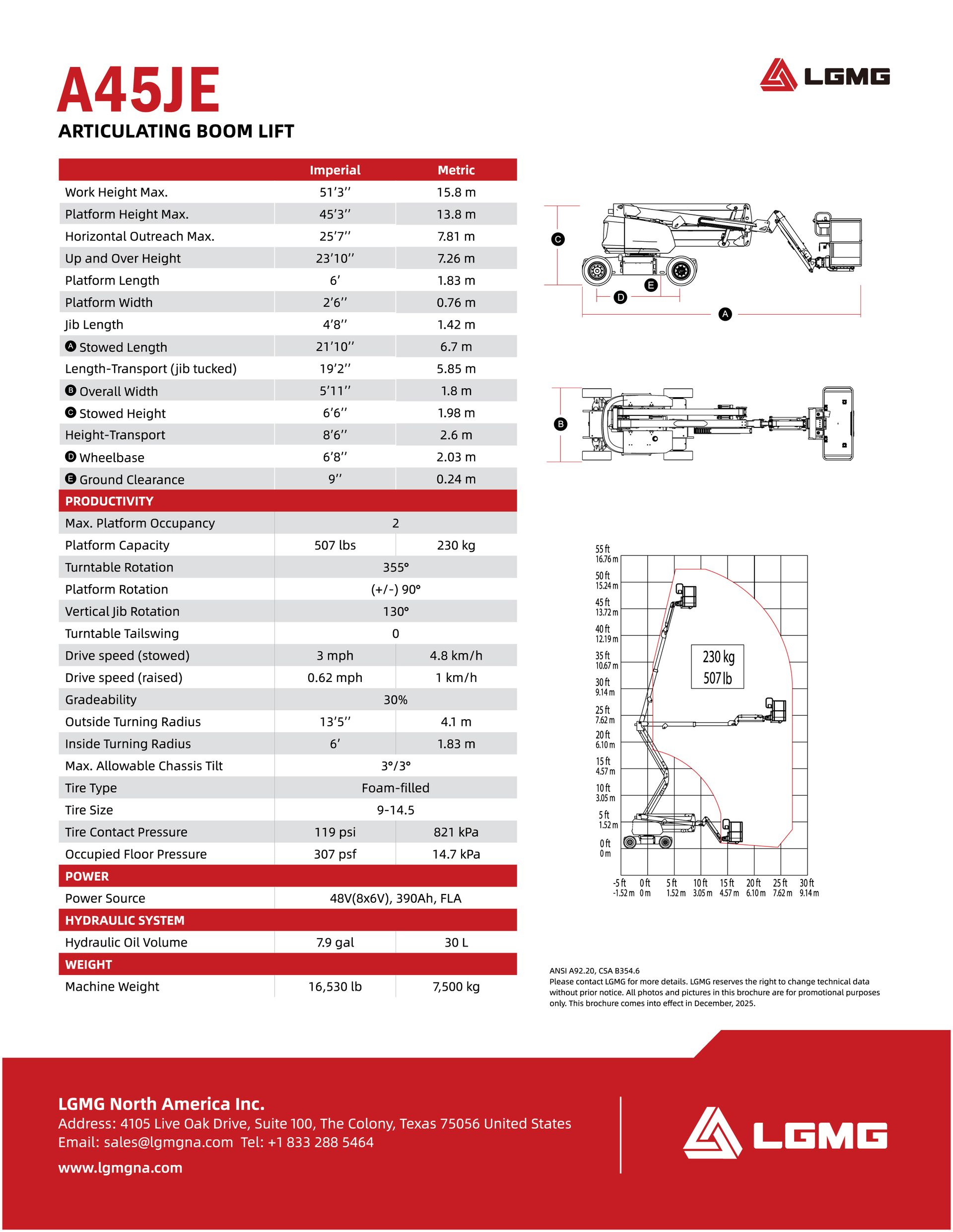

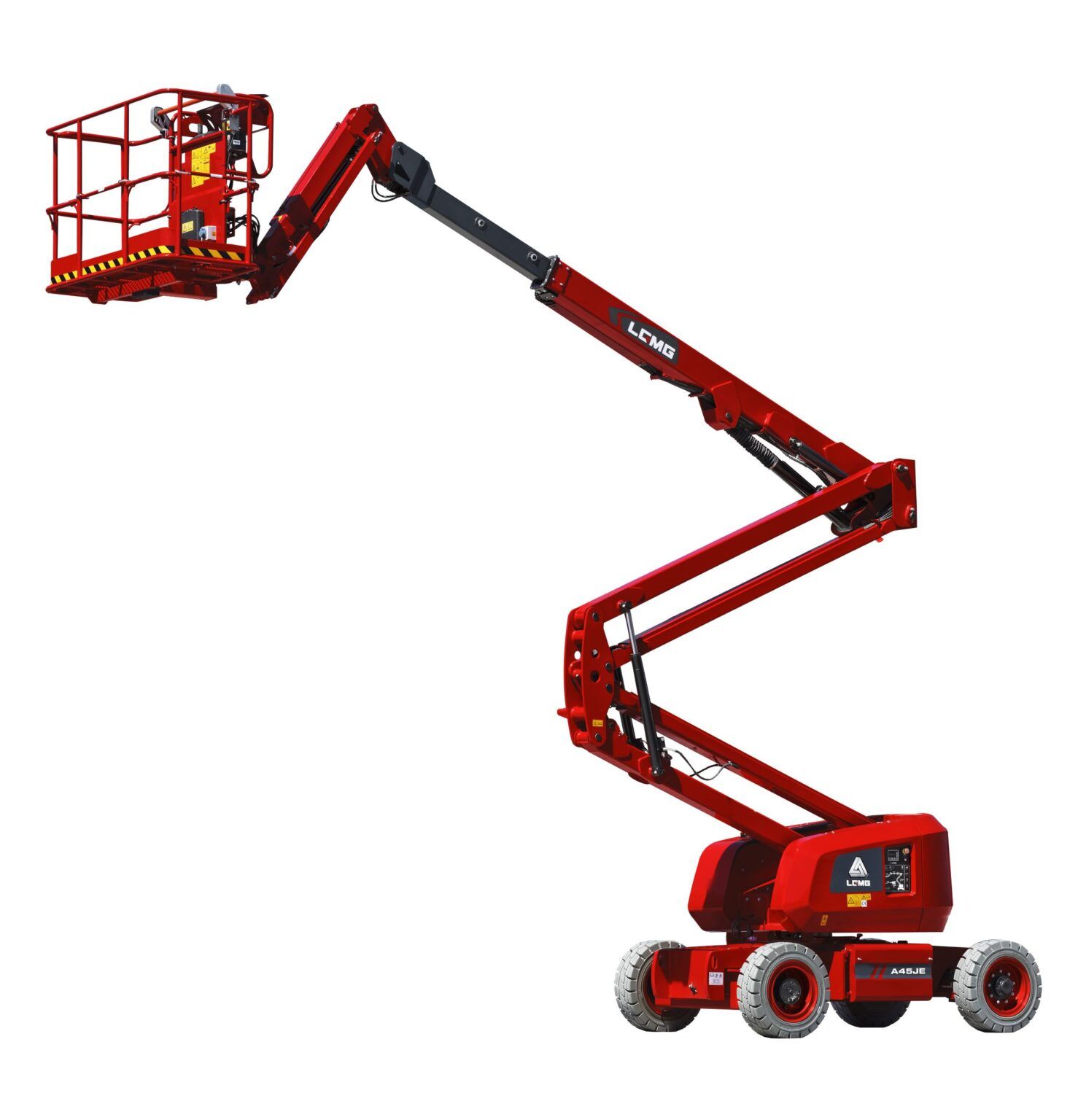

A45JE Electric Articulating Boom Lift

  • Platform Height Max: 45'3"
  • Platform Capacity: 507 lb
  • Horizontal Outreach: 25'7"
  • Up & Over Clearance Max: 23’10"
  • Platform Occupancy: 2
  • Power: 48V(8x6V), 390Ah, FLA
  • OUTSTANDING ACCESS: A 45'3" platform height, 25'7" of outreach, and an up and over height of 23'10" make it easier to reach locations within the large work envelope.
  • MORE VERSATILITY: 5’ jib comes STANDARD.
  • DURABLE PROTECTION: The STANDARD LGMG Hostile Environment Kit includes cylinder bellows, boom wipers, hydraulic hose sheathing, and a metal platform control box cover, protecting the machine in harsh jobsite conditions.
  • ADDED SECURITY: STANDARD master battery disconnect switch allows you to shut down and secure the lift from unwanted usage.
