Articulating Boom Lifts
*For illustrative purposes only. Operate equipment in accordance with all manuals and safety requirements.

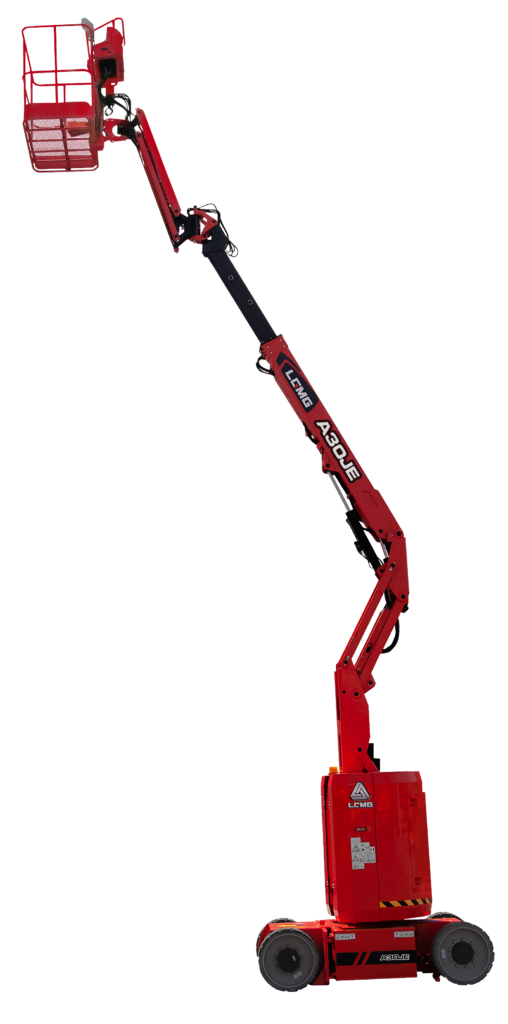

A30JE Electric
- Platform Height Max: 29'6"
- Platform Capacity: 507 lb
- Horizontal Outreach: 20'6"
- Up & Over Clearance Max: 13'6"
- Platform Occupancy: 2
- Power: 48V(8x6V),390Ah, FLA

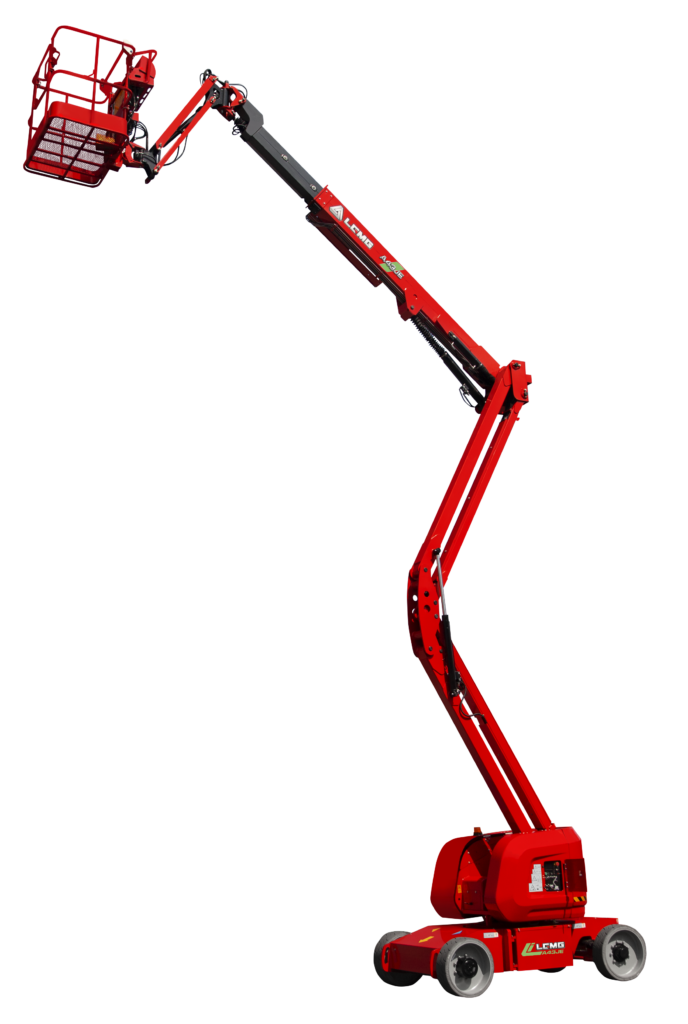

A43JE Electric
- Platform Height Max: 42'8"
- Platform Capacity: 441 lb
- Horizontal Outreach: 24'6"
- Up & Over Clearance Max: 23'4"
- Platform Occupancy: 2
- Power: 48V(8x6V), 390Ah, FLA
A45JE Electric
- Platform Height Max: 45'3"
- Platform Capacity: 507 lb
- Horizontal Outreach: 25'7"
- Up & Over Clearance Max: 23’10"
- Platform Occupancy: 2
- Power: 48V(8x6V), 390Ah, FLA

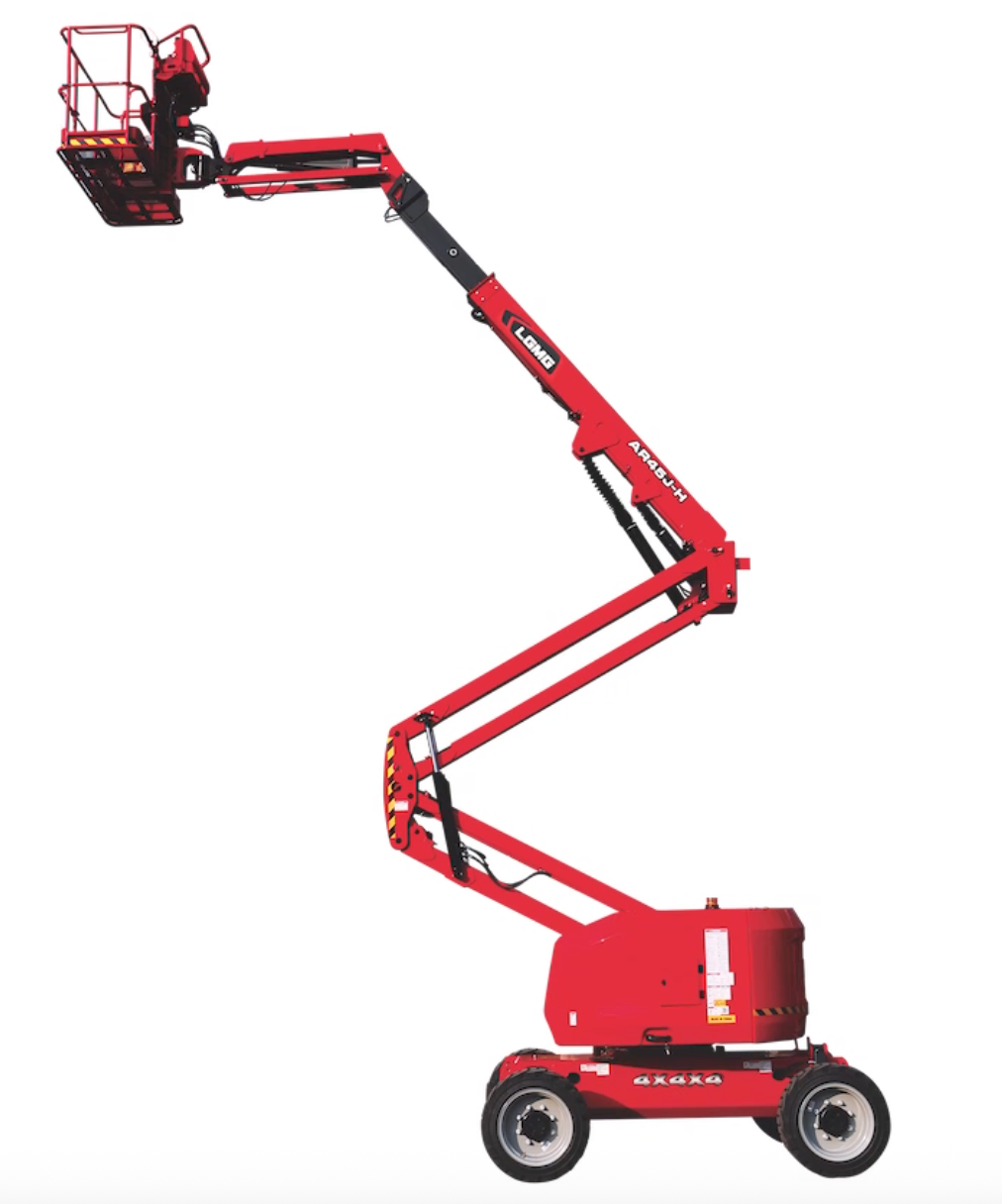

AR45J-H Diesel
- Platform Height Max: 45'7"
- Platform Capacity: 661/992 lb
- (unrestricted/restricted)
- Horizontal Outreach: 25'3"
- Up & Over Clearance Max: 24'3"
- Platform Occupancy: 2 (unrestricted)/
- 3 (restricted)
- Power: Kubota V2403 36kw/48hp
