Electric Slab Scissor Lifts
*For illustrative purposes only. Operate equipment in accordance with all manuals and safety requirements.
SS1532ER Micro
- Platform Height Max: 20'9" / 18'1" (in/out)
- Platform Capacity: 500 lb
- Machine Weight: 2,293 lb
- Overall Width: 31.9”
- Power: 24V (2x12V), 115Ah, FLA

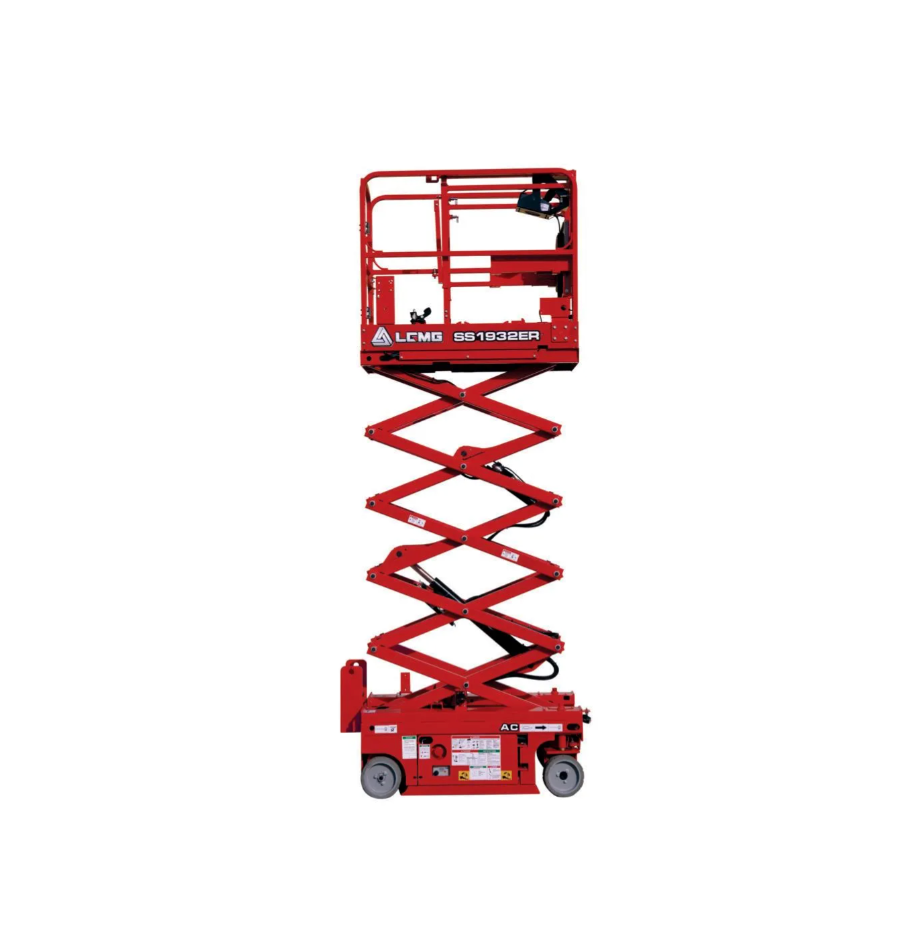

SS1932ER Micro
- Platform Height Max: 24'11"/ 18'1" (in/out)
- Platform Capacity: 500 lb
- Machine Weight: 4,365 lb
- Overall Width: 31.9”
- Power: 24V (2x12V), 150A, FLA

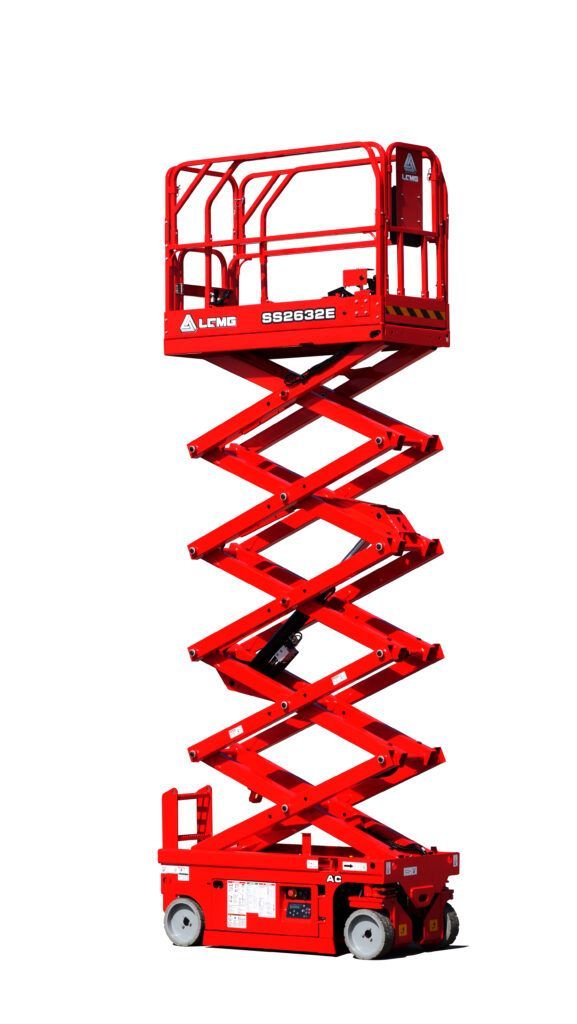

SS2632E Micro
- Platform Height Max: 25'7"/19'8" (in/out)
- Platform Capacity: 510 lb
- Machine Weight: 4,850 lb
- Overall Width: 2'9"
- Power: 24V (4x6V), 225Ah, FL

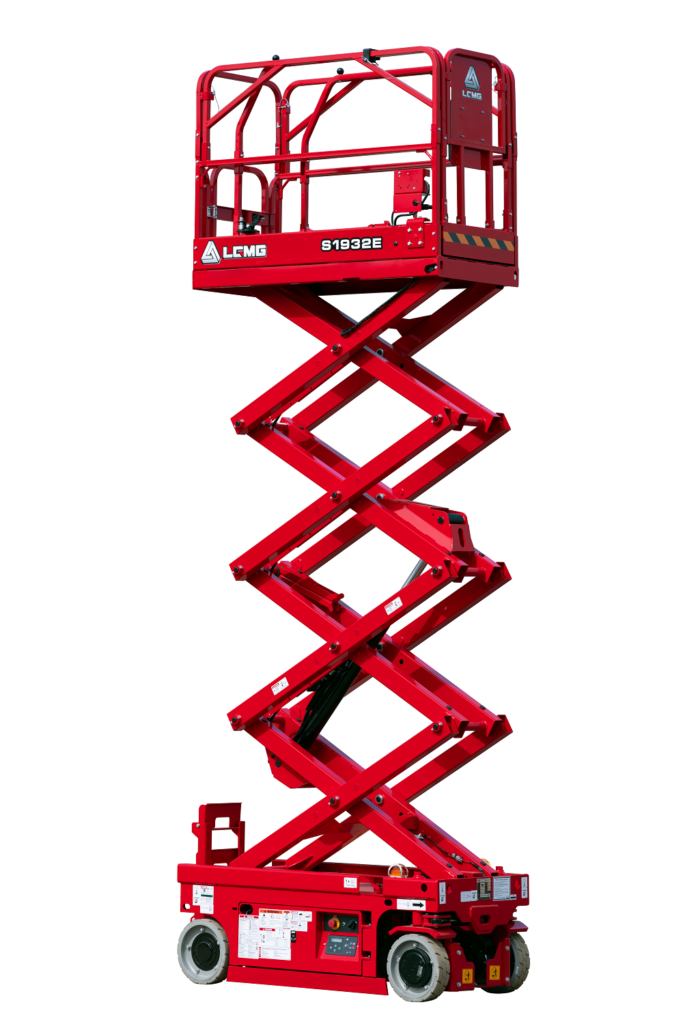

S1932E Slab
- Platform Height Max: 19'
- Platform Capacity: 510 lb
- Machine Weight: 3,549 lb
- Overall Width: 2'3"
- Power: 24V (4x6V), 225Ah, FLA

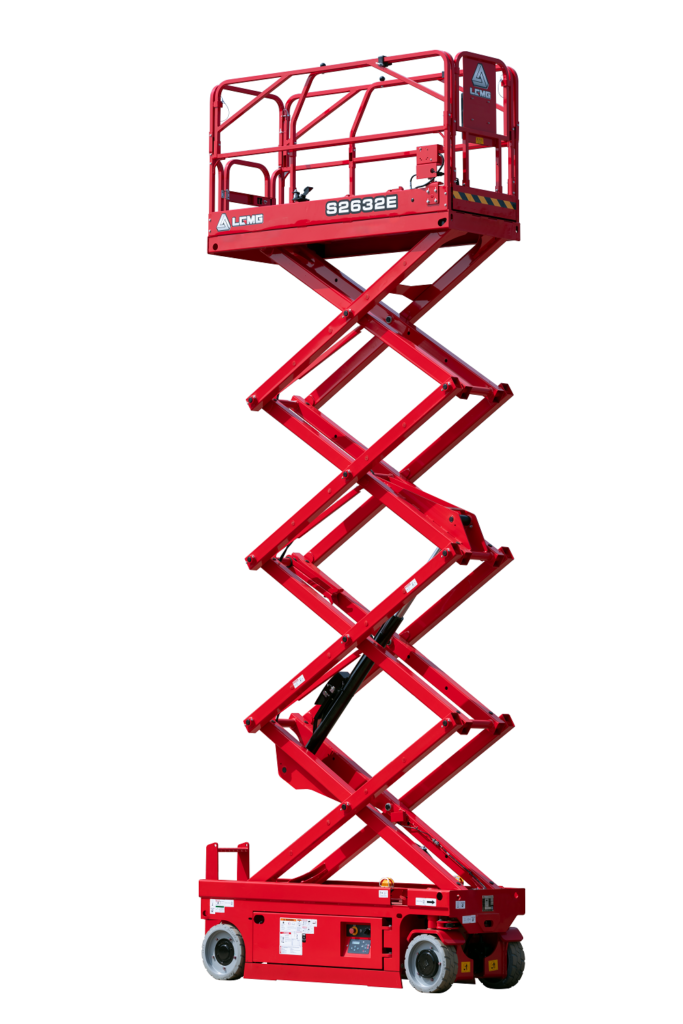

S2632E Slab
- Platform Height Max: 25'7"/19'8" (in/out)
- Platform Capacity: 510 lb
- Machine Weight: 4,850 lb
- Overall Width: 2'9"
- Power: 24V (4x6V), 225Ah, FLA
S2646E Slab
- Platform Height Max: 26'3"
- Platform Capacity: 990 lb
- Machine Weight: 5,110 lb
- Overall Width: 3'10"
- Power: 24V (4x6V), 240Ah, FLA

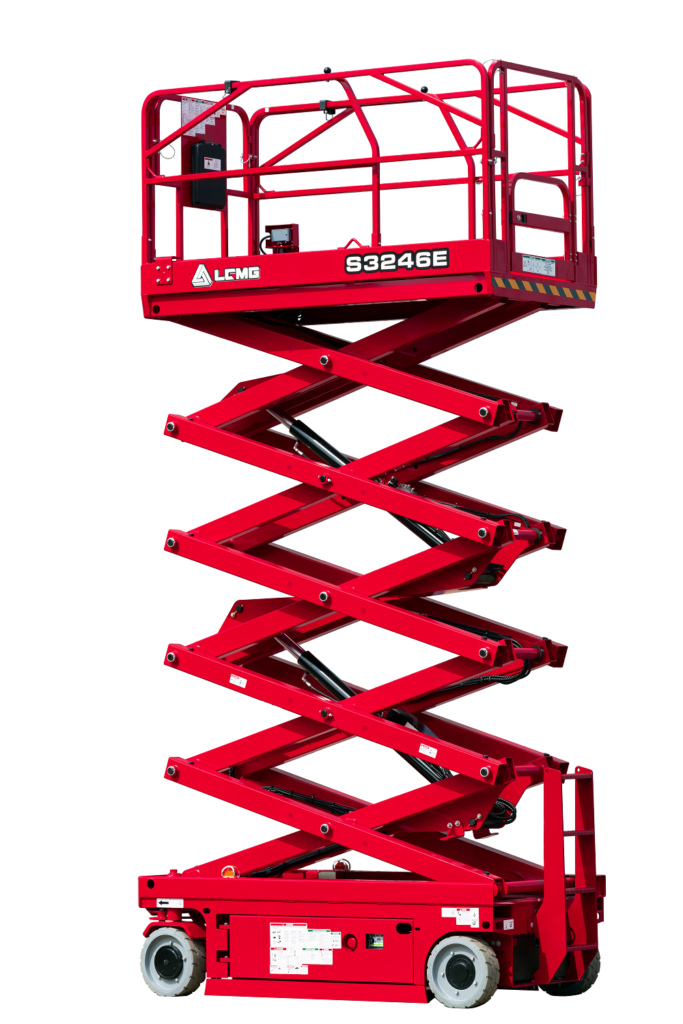

S3246E Slab
- Platform Height Max: 32'10"
- Platform Capacity: 705 lb
- Machine Weight: 6,603 lb
- Overall Width: 3'10"
- Power: 24V (4x6V), 240Ah, FLA

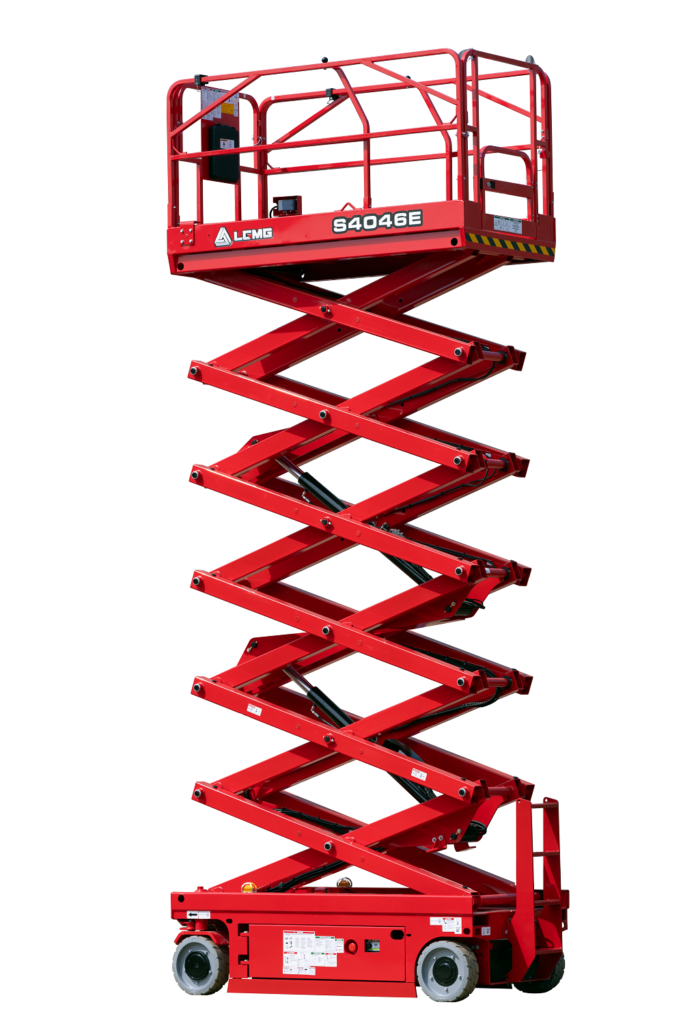

S4046E Slab
- Platform Height Max: 39'4"/24'7" (in/out)
- Platform Capacity: 705 lb
- Machine Weight: 6,548 lb
- Overall Width: 3'10"
- Power: 24V (4x12V), 300Ah, FLA

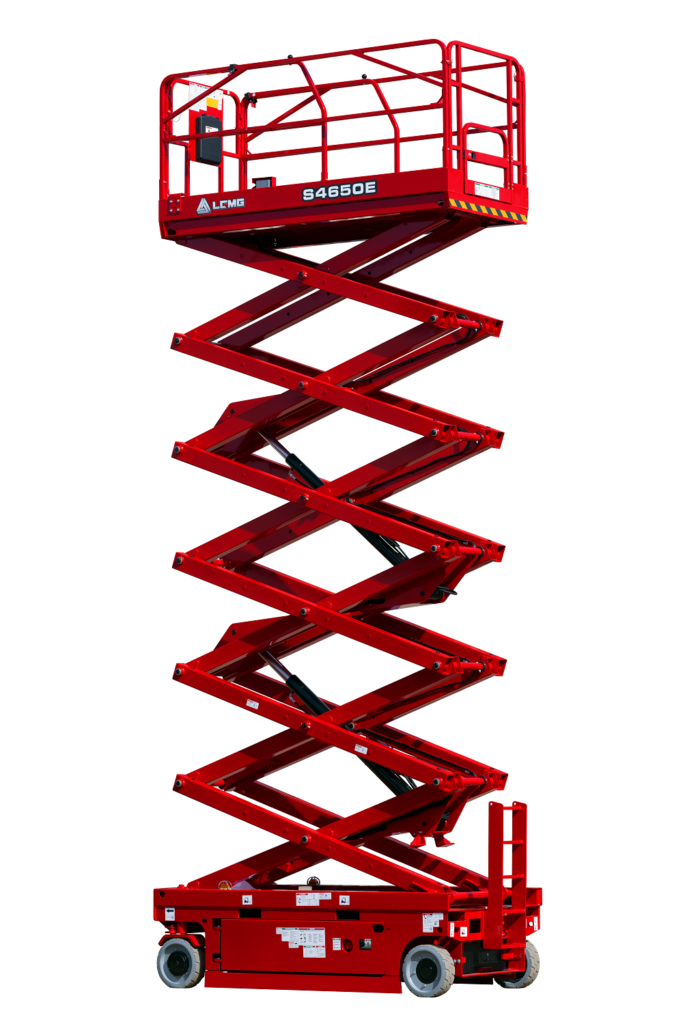

S4650E Slab
- Platform Height Max: 45'3"/26'3" (in/out)
- Platform Capacity: 705 lb
- Machine Weight: 7,716 lb
- Overall Width: 4'3"
- Power: 24V (4x12V), 300Ah, FLA
