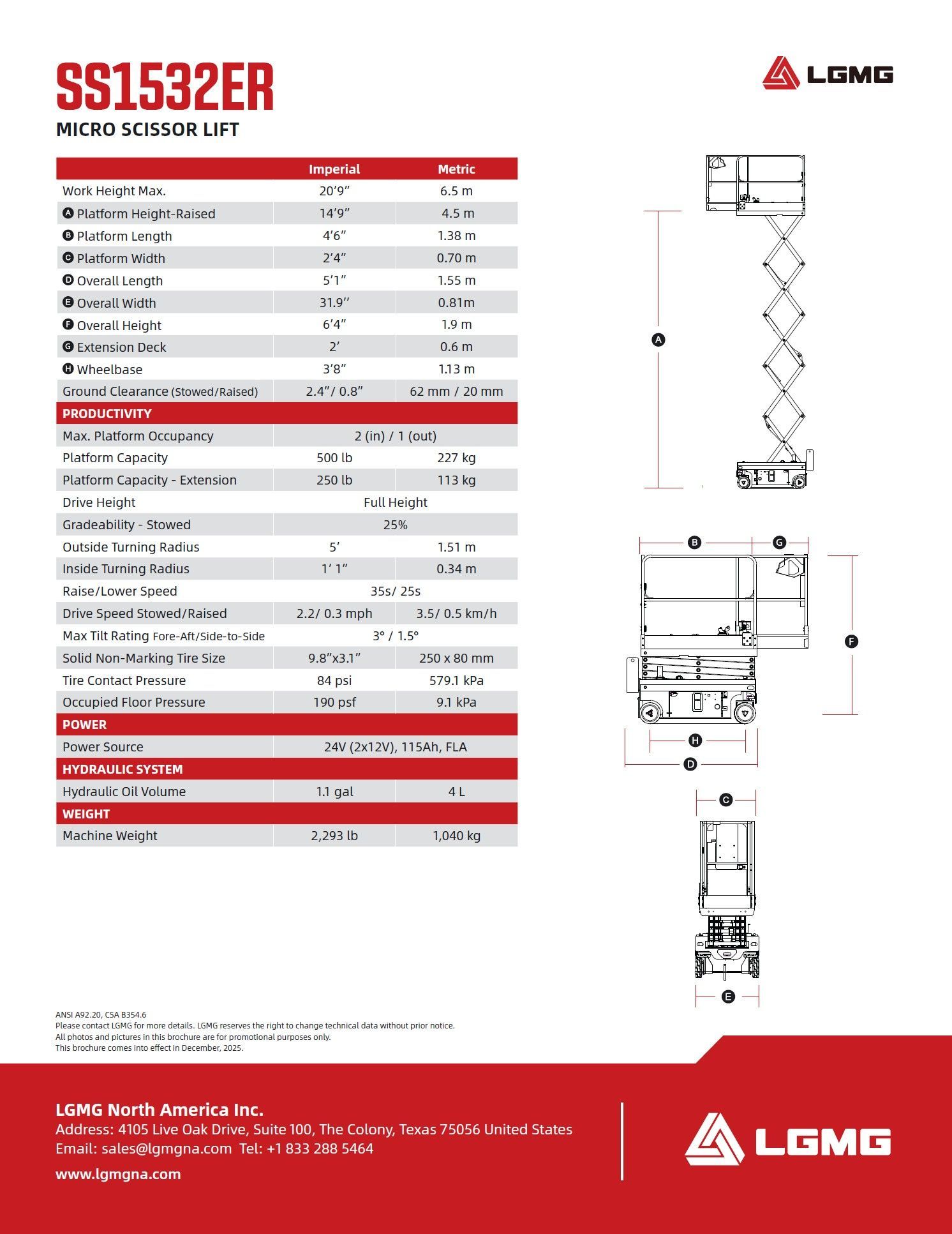

SS1532ER Micro Scissor Lift
- Platform Height Max: 20'9" / 18'1" (in/out)
- Platform Capacity: 500 lb
- Machine Weight: 2,293 lb
- Overall Width: 31.9”
- Power: 24V (2x12V), 115Ah, FLA
- COMPACT DESIGN: 31.9” overall width and 61” overall length makes it easier to navigate tighter jobsites.
- CAPACITY: 500 lb platform capacity. Rated for up to 2 occupants (2 in/1 out).
- MORE STANDARD FEATURES: Perimeter lighting provides a clear visual cue in noisy environments, the integrated Step Deck adds reach for overhead work, and a leak containment system helps maintain cleaner jobsites.
- SIMPLE MANUAL BRAKE RELEASE SWITCH: Easily release the brakes by rotating the conveniently located switch at the back of the lift with the machine key.

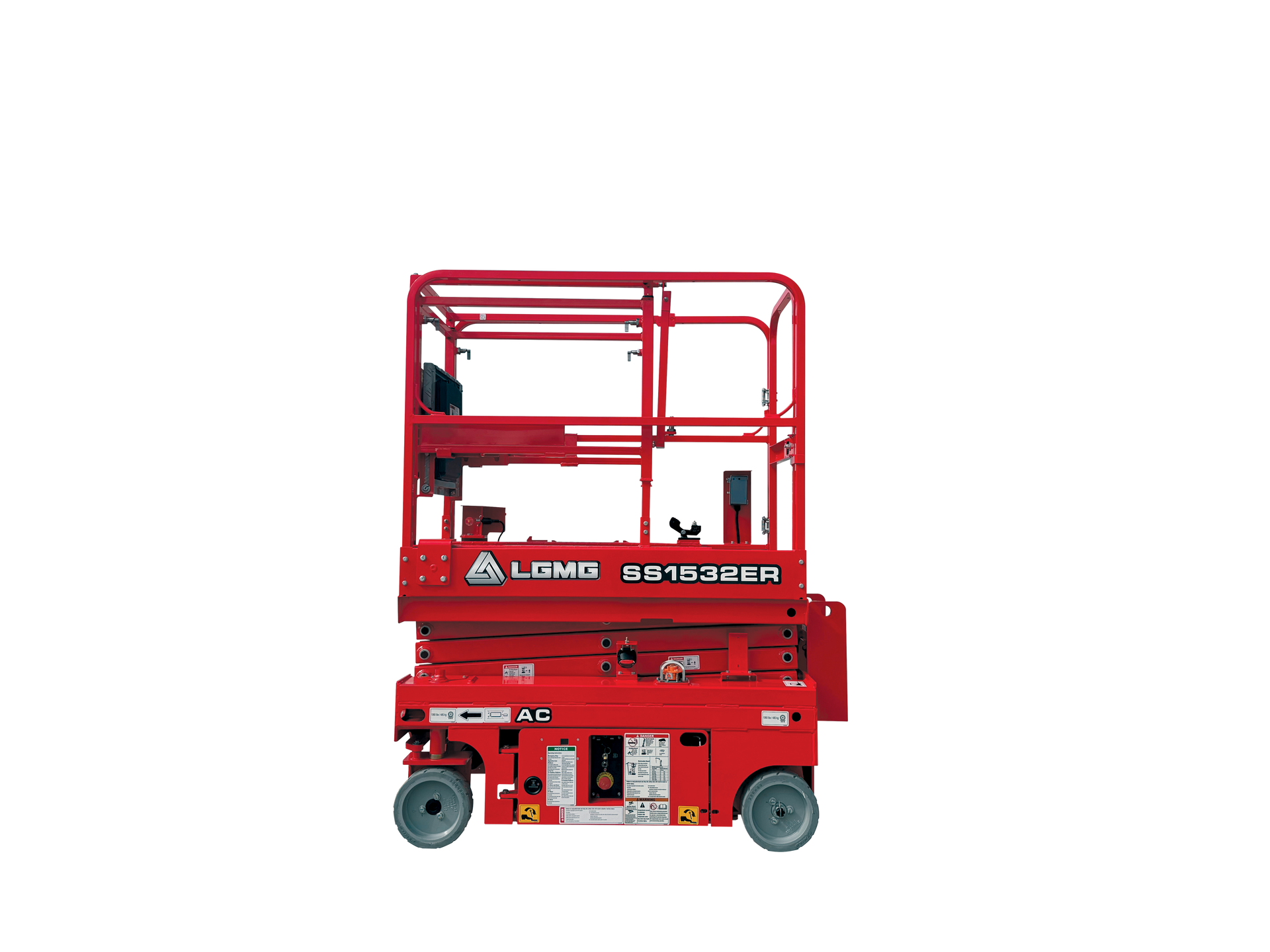

- LOW STOWED HEIGHT: A 6’4” overall height allows operators to pass through a standard door without folding rails.
- SMOOTHER MOTION FOR BETTER CONTROL: Permanent magnet synchronous lift motor provides smoother motion for better control and is more efficient than other AC motors, meaning more working time between charges.
