M2030SE Electric Vertical Mast Lift
- Platform Height Max: 19'8"/15'9" (in/out)
- Platform Capacity: 352 lb
- Machine Weight: 2,579 lb
- Overall Width: 2'6"
- Power:
24V (2x12V), 100Ah, AGM
COMPACT DESIGN: At 55" in overall length and 30" in overall width, the M2030SE is engineered to fit through tight spaces and operate efficiently in confined environments.
LEAK CONTAINMENT SYSTEM: Comes STANDARD.
SERVICE ACCESS: The double doors provide wider access for maintenance.
MORE ACCESS: STANDARD extension deck with 352 lb capacity.
PERFECT FIT: for confined spaces such as data centers, warehouses, and hospitals.

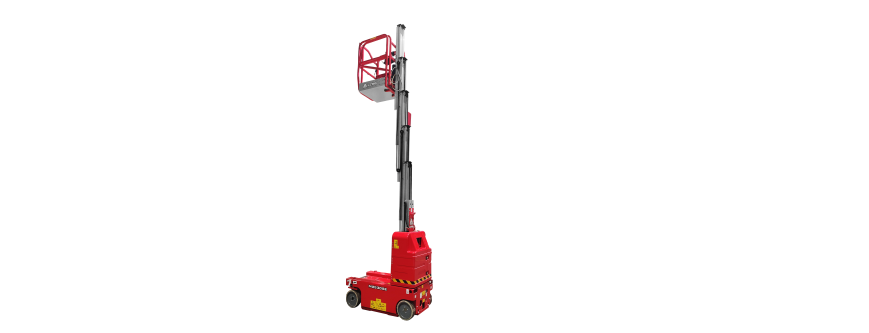

LGMG M2030SE Vertical Mast Lift
The LGMG M2030SE vertical mast lift is the ultimate machine for reaching elevated work areas in tight spaces. It provides 19’8” (6 m) indoor platform height and 15’9” (4.8 m) outdoor working height. At 55 in (1.40 m) overall length and 30 in (0.76 m) overall width, its compact footprint is perfect for space-constrained work. Its electric power delivers zero emissions with low noise output. It’s a highly maneuverable solution for indoor maintenance and installation jobs where a compact footprint doesn’t allow for a scissor lift.
MORE STANDARD FEATURES = MORE BUILT-IN VALUE
For rental fleets, the M2030SE delivers more built-in value by including key jobsite features as standard equipment. A standard extension deck provides additional outreach, while the standard leak containment system helps protect floors. Together, these features give rental customers more usable capability from the machine from day one.
VERSATILE APPLICATIONS
The M2030SE vertical mast lift is engineered for performance in a variety of specialized environments, and as an electric-powered model, it’s a perfect fit for indoor work across many applications.
- Data Centers & Warehouses: Its compact frame is perfectly suited for the tight spaces of data centers and warehouses, enabling operators to perform tasks on high shelving or server banks. It is designed for one-person, light-duty work requiring frequent vertical movement.
- Retail & Office Spaces: In retail and office settings, it can navigate around displays and through cubicle office settings, making it an excellent choice for routine maintenance like servicing light fixtures. Its ability to fit through standard doorways makes it exceptionally versatile across work areas.
- Hospitals & Clean Environments: The combination of non-marking tires and a standard leak containment system makes it a strong option for hospitals and other clean facilities, where preventing floor damage is paramount.
ADVANCED FEATURES
- Superior Maneuverability: The M2030SE lift offers exceptional agility thanks to a shorter wheelbase, allowing it to access areas that are too constricted for scissor lifts. Increased productivity can be achieved by driving at full platform height, which is especially useful when working along long rows of warehouse shelving or data racks.
- Standard Leak Containment: A built-in leak containment system comes standard, channeling potential hydraulic drips into a dedicated tray with an absorbent pad. This proactive design helps address the floor protection requirements of many job sites.
- Simplified Serviceability: Designed for easier maintenance, the M2030SE electric vertical mast features dual rear doors that open a full 180 degrees, providing unobstructed access to internal components. The machine’s controller provides clear text-based fault codes for easy troubleshooting, and key inspection points like the mast chains are readily visible.
- Smart Platform Design: An extension deck is included as a standard feature, offering additional outreach without compromising on capacity. The platform's capacity rating remains at 352 lb., whether the extension deck is engaged or stowed, simplifying operation and providing more working area on the platform.
- Easy Transport: Logistics are simplified with four integrated fork pockets for loading and a 25% gradeability for climbing ramps. Its small size makes it easy to haul on a properly rated trailer or truck, offering convenience for a wide range of users.
INDUSTRY-LEADING WARRANTY
The M2030SE is backed by LGMG North America’s industry-leading five-year/5,000-hour warranty on mobile elevating work platforms, reinforcing confidence in the equipment and providing added assurance for rental fleets. *
RELIABLE SUPPORT: PARTS, SERVICE AND TRAINING
LGMG North America supports customers throughout the equipment lifecycle with parts availability, technical support, product training and regional service resources. These capabilities are designed to help resolve issues efficiently, maximize uptime and keep rental fleets productive.
*Terms and conditions apply. Subject to LGMG’s warranty policies then in effect. Please visit www.lgmgna.com/warranty for details.
