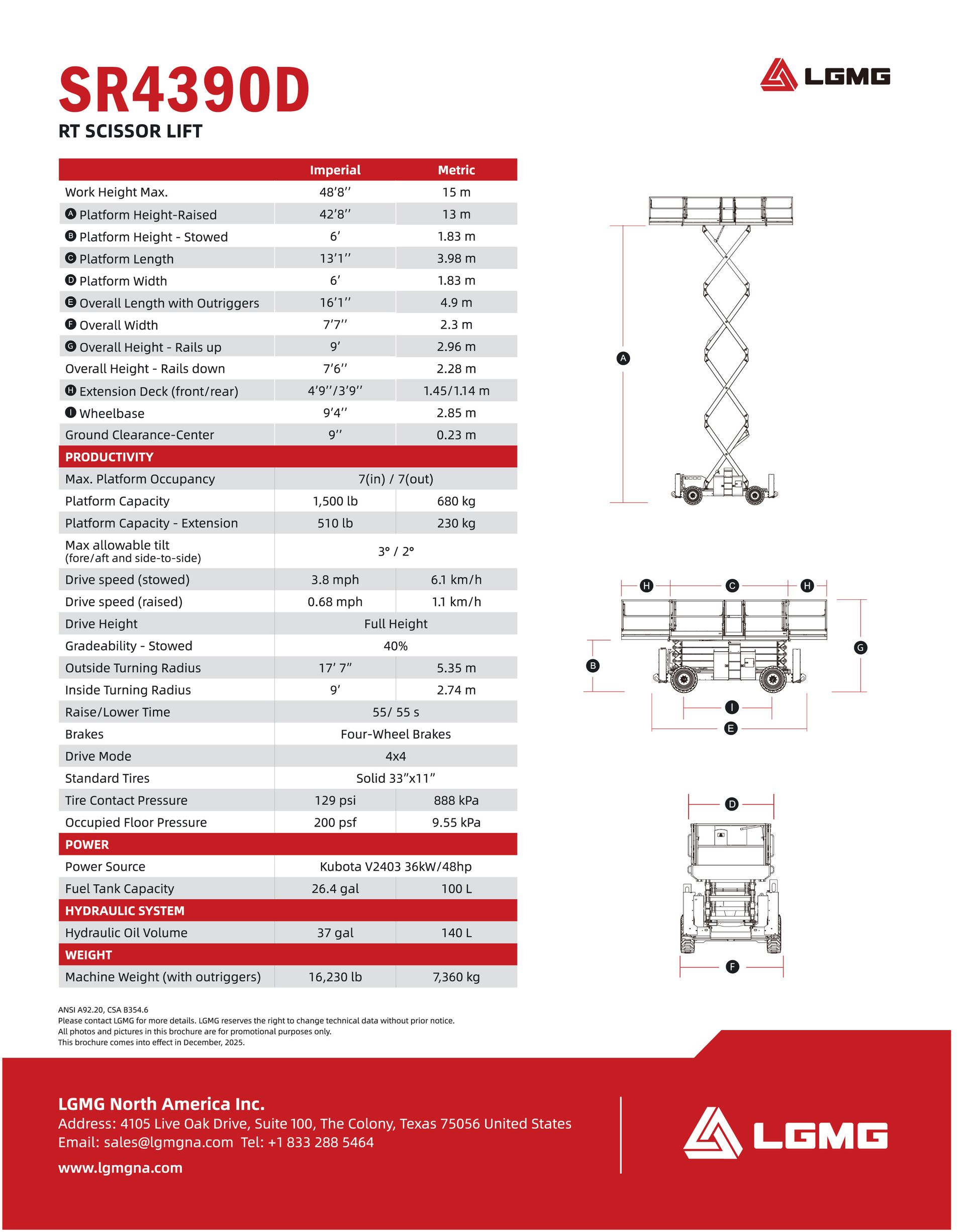

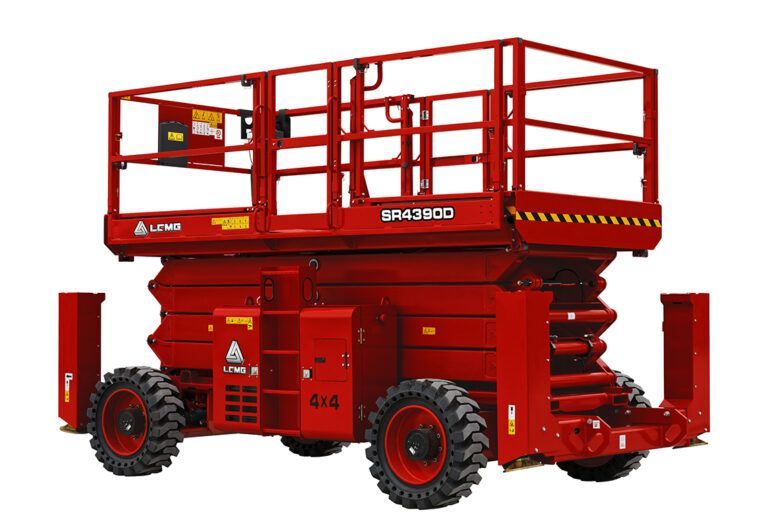

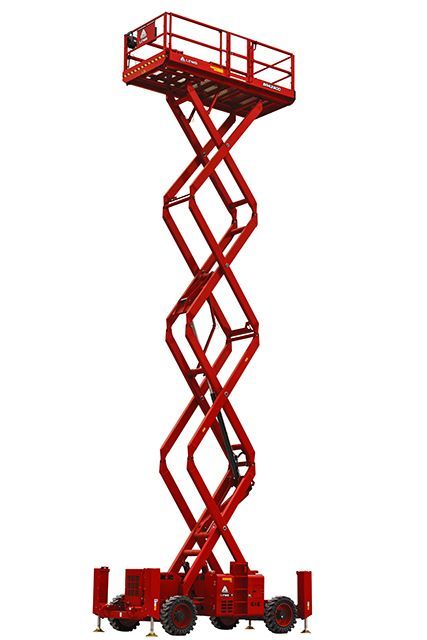

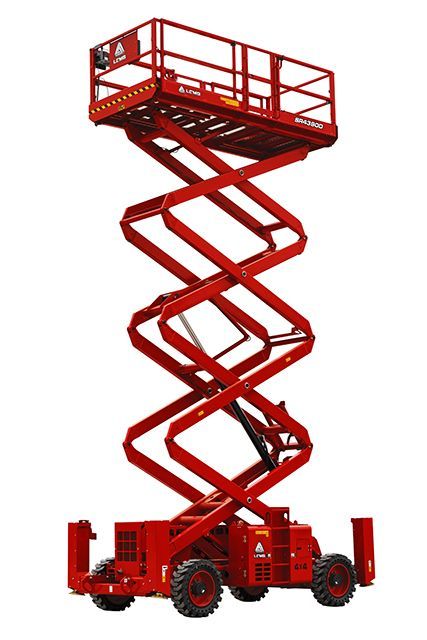

SR4390D Diesel Rough Terrain Scissor Lift

• Platform Height Max: 42'8"
• Platform Capacity: 1,500 lb
• Max Machine Weight: 16,230 lb
• Overall Width: 7'7"
• Power: Kubota V2403 36kW/48hp

• SMOOTH, RESPONSIVE CONTROLS, powered by LGMG’s proprietary software, deliver better handling and reduced bounce and lag.
• LARGE WORK PLATFORM with dual extension decks and a 7 person capacity for increased productivity.
• GREAT TRACTION and power from a 48hp Kubota® engine, oscillating axle, and four wheel drive to traverse jobsites with poor underfoot conditions.
• SERVICE AND MAINTENANCE ARE SIMPLER with an onboard self-diagnosis system and easy access to all service items with a pullout engine tray.
• HEAVIER GAUGE METAL AND PROTECTIVE SHEATHING on most exposed hydraulic hoses for a more robust machine comes STANDARD.
