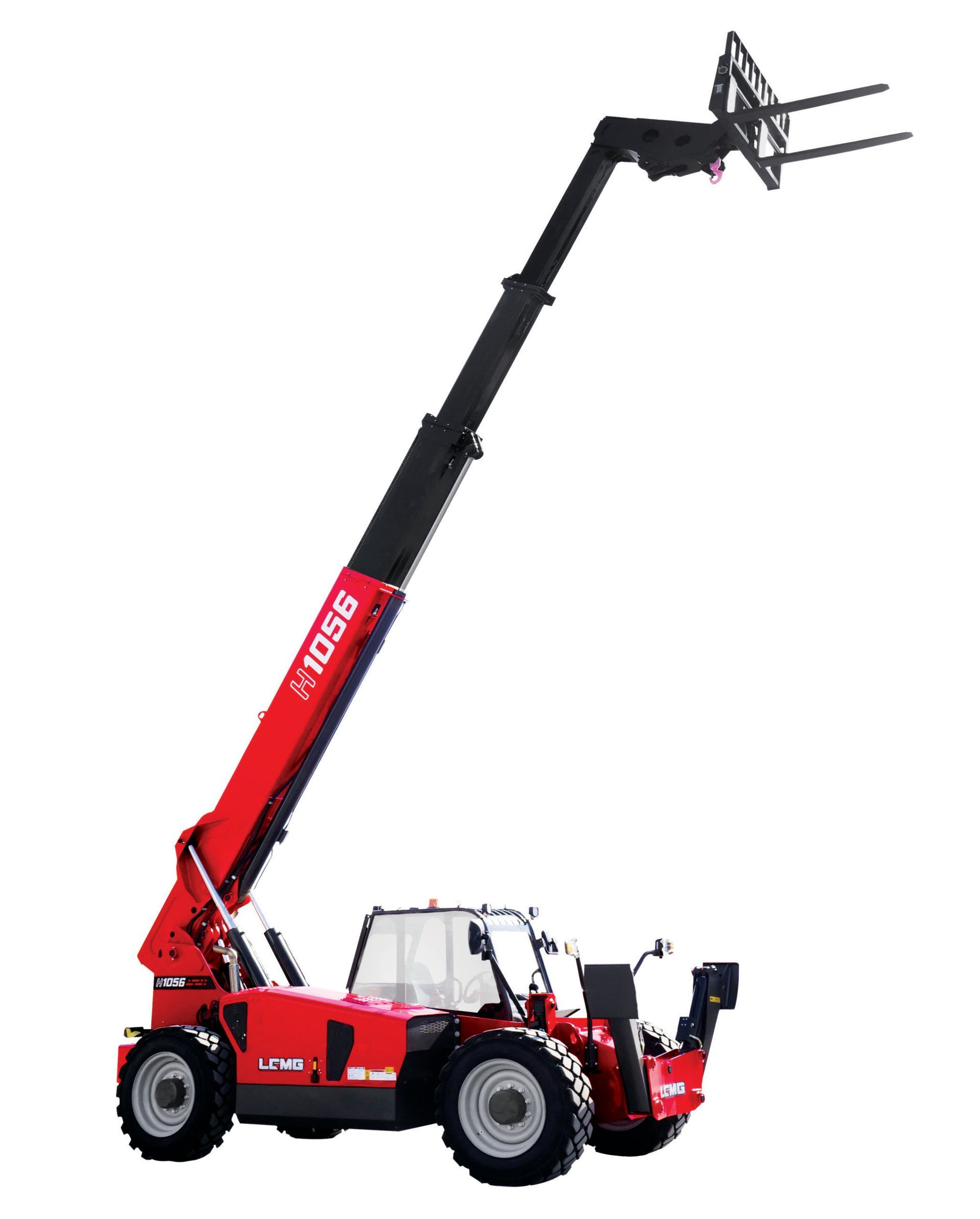

LGMG H1056 10,000 lb Rough Terrain Telehandler

  • Max Lifting Height: 56'1"
  • Max Outreach: 42'
  • Max Capacity: 10,000 lb
  • Machine Weight: 33,730 lb
  • Power: Cummins QSF 3.8L T4f/Stage V, 74 hp
  • Option: Cummins QSF 3.8L T4f, 120 hp
  • HIGH PERFORMANCE: 10,000 lb. lift capacity, 56’ 1” max height,and 42’ outreach for demanding tasks.
  • ENHANCED MANEUVERABILITY: Three steering modes, including four-wheel and crab steer, allow operators to easily navigate tight job sites.
  • BUILT FOR ROUGH TERRAIN: With four-wheel drive and industry-standard Dana® limited slip axles, the LGMG H1056 excels in uneven and demanding terrains.
  • BUILT TOUGH: Durable steel engine cover comes STANDARD.
  • QUICK TRANSIT: Cummins® 74 HP (120 HP optional) engine engine with a 15.5 mph travel speed to save time on-site.
  • OPERATOR-FRIENDLY DESIGN: The ergonomic cab features intuitive controls, multiple load chart placements for quick reference, and a spacious layout to reduce operator fatigue.
LGMG H1056 10,000 lb Rough Terrain Telehandler
LGMG H1056 10,000 lb Rough Terrain Telehandler
